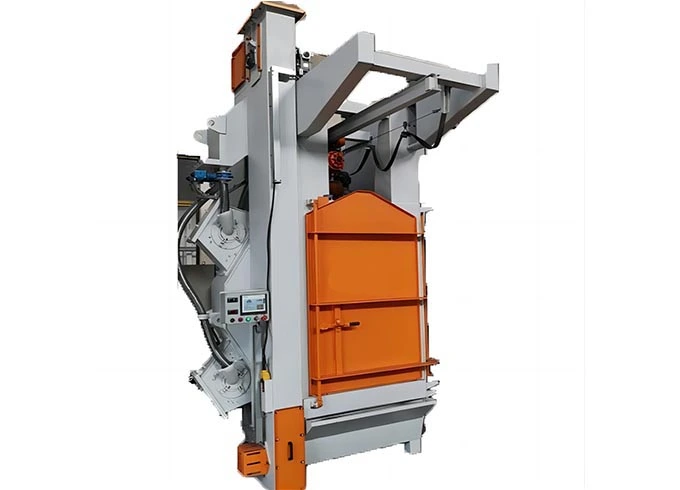

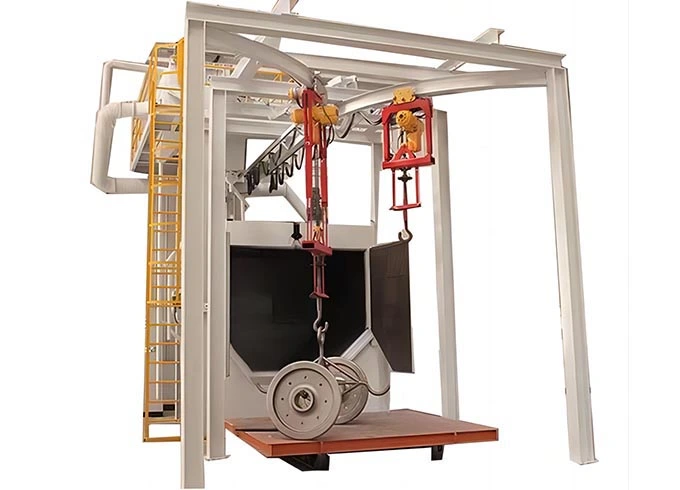

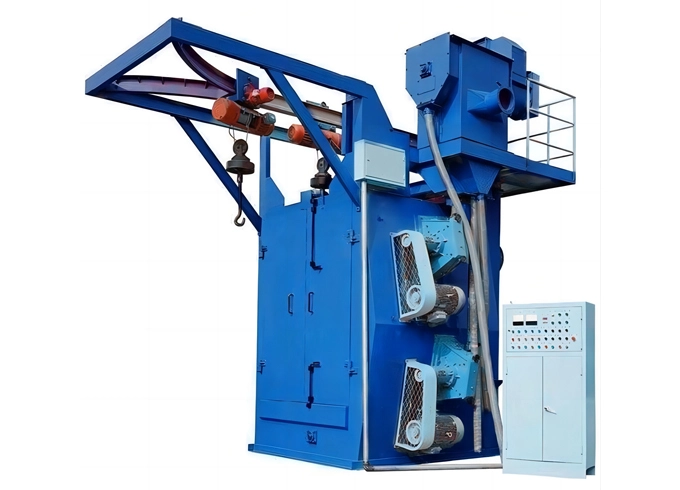

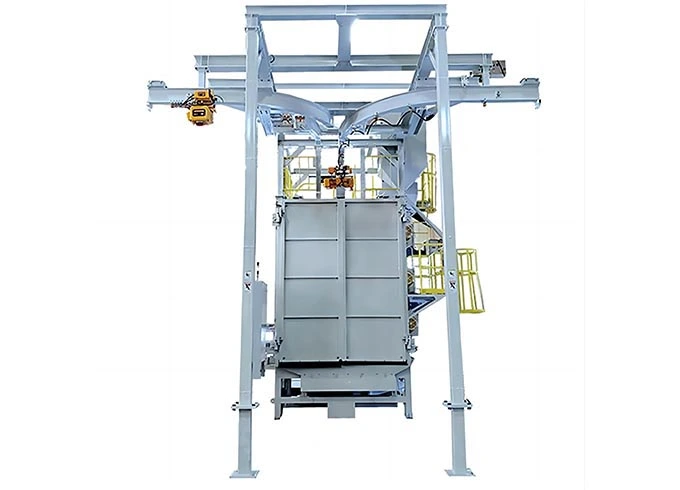

Hanger Type Shot Blasting Machine

The Spinner Hanger Type Shot Blasting Machine is a versatile solution for efficiently cleaning and preparing a wide range of parts. Designed for ease of use, spinner hanger type shot blasting machine suspends components on hangers, allowing for uniform blasting of even complex shapes. Its controlled blasting process is perfect for delicate or thin-walled parts, ensuring consistent quality and optimal results.


For custom structure shot blasting machine with high quality and wide applications, Contact Rosterblast

Hanger Type Shot Blasting Machine

Hanger Type Shot Blasting Machine

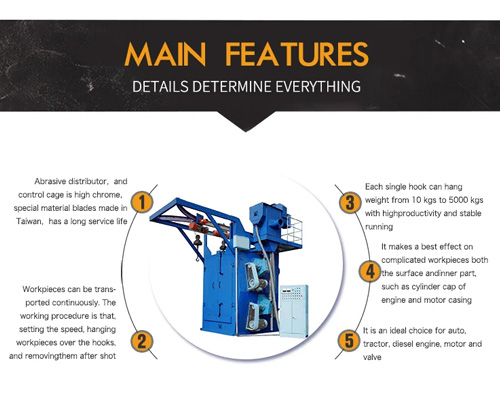

Benefits of Spinner Hanger Type Shot Blasting Machine

  • Robust hanger system for efficient part suspension.

  • Multiple blast wheels for uniform and thorough cleaning.

  • Dust collection and abrasive recovery systems for a clean working environment.

  • High-quality and consistent surface preparation.

  • Shot blaster for sale with reduced maintenance costs and downtime.

  • Environmental friendliness with dust collection.

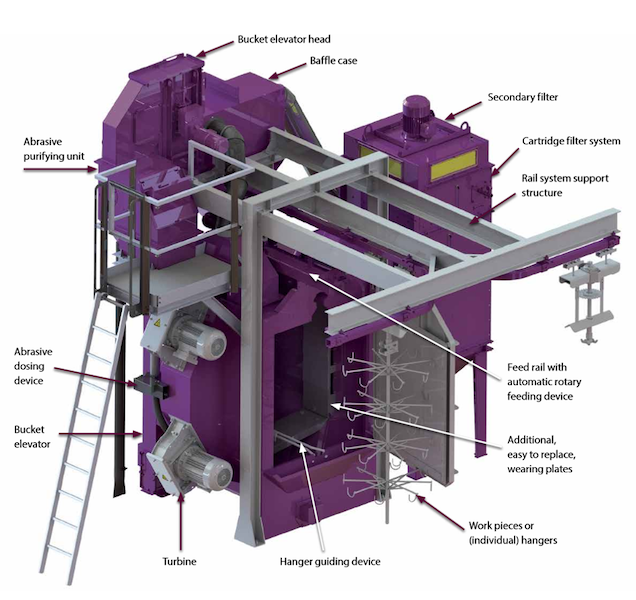

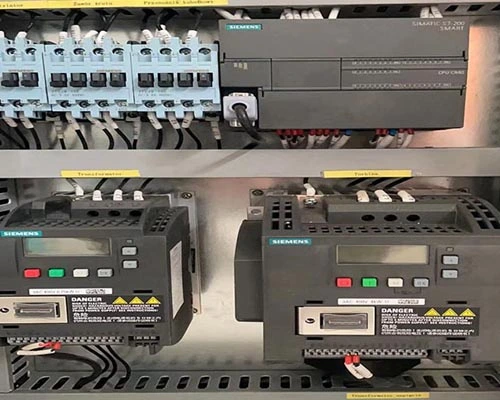

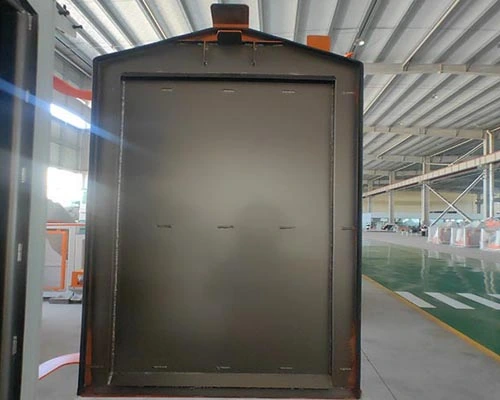

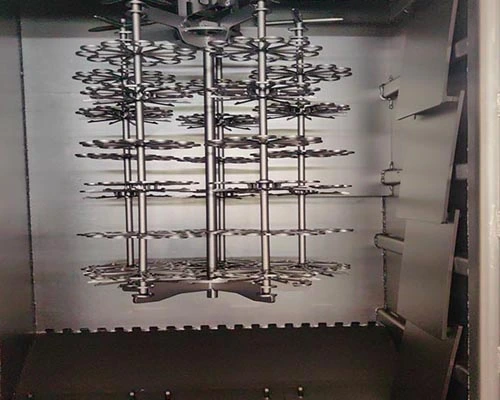

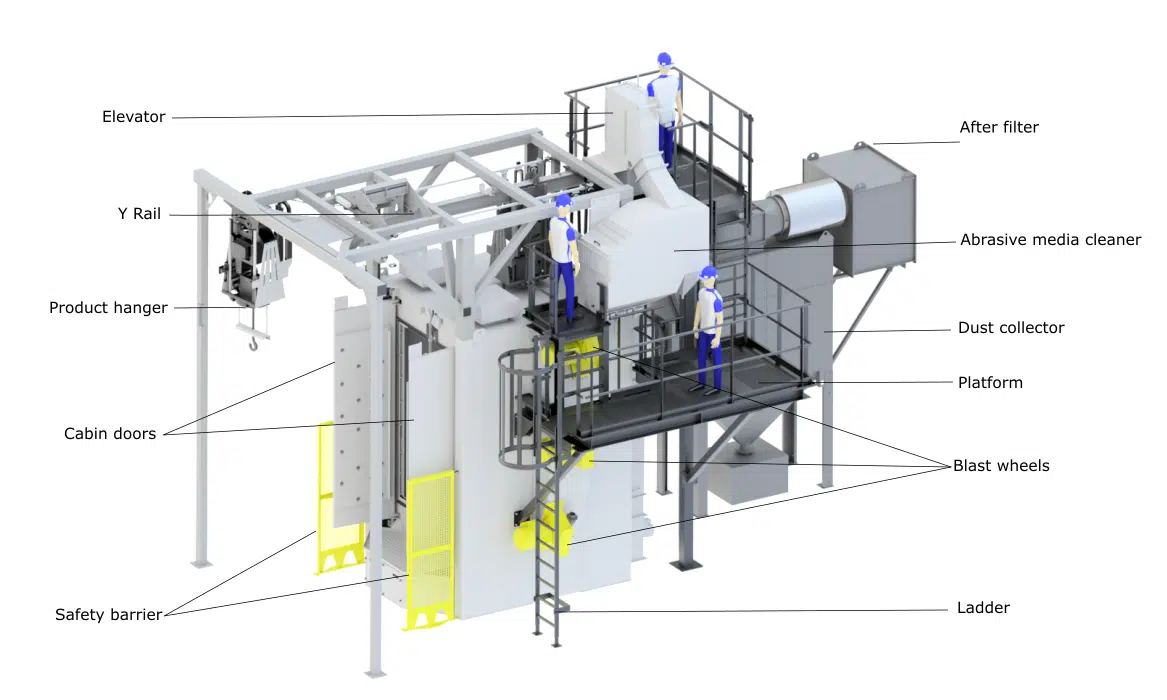

Details of Spinner Hanger Type Shot Blasting Machine

spinner shot blasting machine
spinner hanger type shot blasting machine
spinner hanger shot blasting machine
spinner hanger type shot blasting machine

Video of Spinner Hanger Type Shot Blasting Machine Working Principle




Specifications of Spinner Hanger Type Shot Blasting Machine


ModelQ376Q378Q379Q3710
MAX. Weight1000kg1000kg1000kg1000kg
Workpiece sizeφ600*1200mmφ800*1500mmφ900*1600mmφ1000*2000mm
Charmber sizeL:1500mm
W:1500mm
H:2500mm
L:1800mm
W:1800mm
H:2800mm
L:2000mm
W:2000mm
H:3000mm
L:2000mm
W:2000mm
H:3300mm
Blast Power2*7.5kw2*11kw2*11kw2*11kw
Blast capacity2*130kg/min2*180kg/min2*180kg/min2*180kg/min
Elevator Power2.2kw3kw3kw4kw
Sperator Power
Dust collector Power5.5kw7.5kw7.5kw7.5kw
Total Power25kw35kw35kw36kw


ModelQ3720Q3730Q3740Q3780Q37100
MAX. Weight2000kg3000kg5000kg10000kg10000kg
Workpiece sizeφ1200*2200mmφ1400*2700mmφ1600*3000mmφ2500*5100mmφ2800*5400mm
Charmber sizeL:2200mm
W:2200mm
H:3500mm
L:2400mm
W:2400mm
H:4200mm
L:2600mm
W:2600mm
H:4500mm
L:3500mm
W:3500mm
H:7000mm
L:4000mm
W:4000m
H:7500m
Blast Power3*11kw3*11kw6*11kw8*11kw8*15kw
Blast capacity3*180kg/min3*180kg/min6*180kg/min8*180kg/min8*230kg/min
Elevator Power4kw4kw5.5kw7.5kw11kw
Sperator Power2.2kw5.5kw5.5kw
Dust collector Power11kw11kw18.5kw30kw37kw
Total Power55kw56kw105kw156kw200kw


Spinner hanger type shot blasting machine applications and technology

The spinner hanger type shot blasting machine finds versatile applications across industries. In the automotive shot blasting machine, spinner hanger type shot blasting machine efficiently cleans vehicle components like chassis and engine parts. In surface treatment in construction, spinner hanger type shot blasting machine for sale prepares surfaces for painting or coating, enhancing durability. Maritime and shipbuilding industries rely on marine surface preparation to remove rust and scale from ship surfaces. In the railway industry, shot blasting equipment effectively removes rust, scale, paint, and other contaminants from metal surfaces, preparing them for repainting, coating, or further maintenance. As surface cleaning equipment, foundries and metal casting benefit from its ability to clean molds and remove burrs. In the oil and gas sector, the shot blast cleaning machine ensures equipment longevity by removing corrosion and coatings. Metalworking and manufacturing industries use this shot blasting equipment for surface finishing, while its adaptability makes it a staple in general manufacturing for various cleaning and preparation tasks.
