Rotary Barrel Shot Blasting Machine

Employing a rotating barrel, this machine is ideal for batch cleaning of smaller components, parts, or intricate pieces. It provides a thorough and uniform surface treatment by tumbling the parts within the barrel, ensuring even coverage and efficient cleaning. Its versatility allows for processing various shapes and sizes of components, making it a reliable choice for industries requiring precision surface preparation.

For custom structure automotive shot blasting machine with high quality and wide applications, Contact Rosterblast, a trusted shot blasting machine supplier.

Features of Rotary Barrel Shot Blasting Machine

  • Utilizes a rotating barrel for even coverage and efficient cleaning.

  • The rotary barrel shot blasting machine for sale is versatile and suitable for processing various shapes and sizes of components.

  • Ensures a thorough and uniform surface treatment.


Rotary drum shot blasting machine applications

Rotary drum shot blasting machines are widely used in various industries for surface preparation, cleaning, and finishing of metal components. Rotary drum shot blasting machines' versatility and efficiency make them a popular choice for a range of applications.


Descaling: Removing oxide scale, rust, and other contaminants from metal surfaces, such as castings, forgings, and heat-treated parts.


De-sanding: Removing sand and other impurities from castings.


Deburring: Removing sharp edges and burrs from metal parts.


Surface Cleaning: Removing dirt, grease, and other contaminants from metal surfaces.


Surface Finishing: Creating a uniform surface finish for improved adhesion of coatings.


Shot Peening: Inducing compressive stresses on the metal surface to improve fatigue life and resistance to stress corrosion cracking.

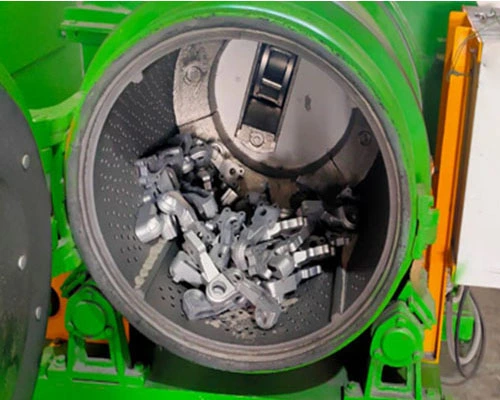

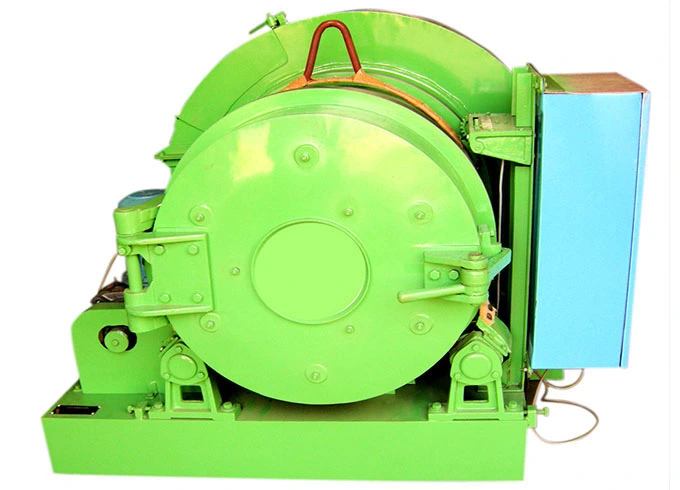

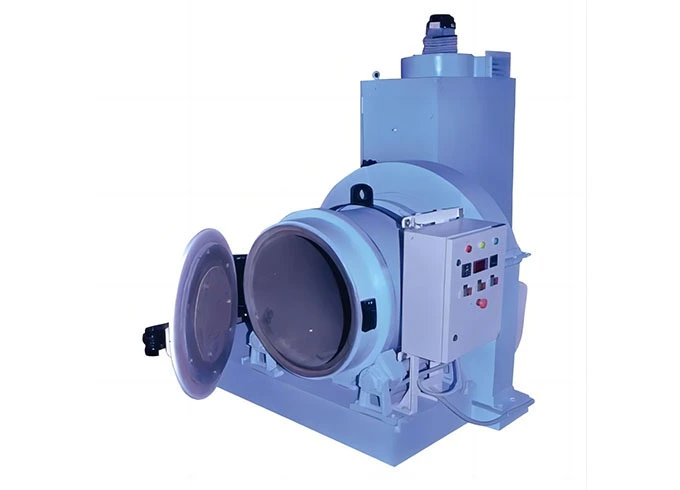

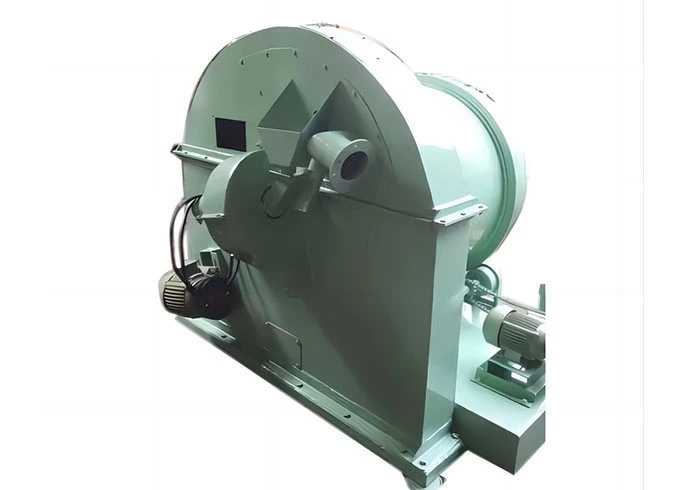

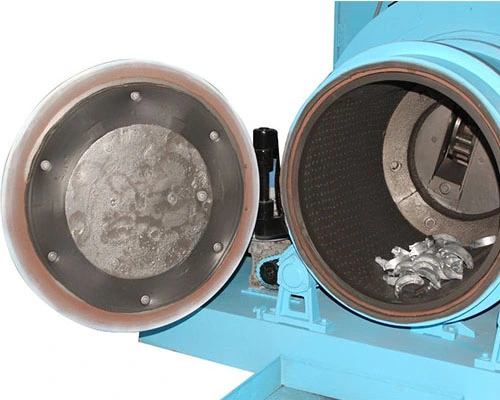

Details of Rotary Barrel Shot Blasting Machine

rotary barrel shot blasting machine
rolling drum shot blasting machine



Specifications of Rotary Barrel Shot Blasting Machine

item\typeQ3113BⅠQ3113BⅡQ3110BⅠQ3110BⅡ
diameter of rolling drummmφ1300φ1300φ1000φ1000
loading capacitykg600600300300
productivitykg/h2500-35002500-3500600-1500600-1500
powerkw14,516,39,711,9
maxmum weight of workpiecekg30301515
rotational speed of rolling drumr/min2,52,533
abrasive flow ratekg/min160160120120
ventilation capacitym³/h200028008002000
dedusting efficiency%85998599
outline dimensionmm2550*2341*22504326*2341*22502078*2458*18612078*2458*1861



DescriptionModel 1Model 2
Flow Rate of Wheel (Kg./Hr.)11356000
Drum Size (mm)575 (Dia) X 625 (L)900 (Dia) x 950(L)
Barrel Capacity (Kg.)100150
Barrel Effective Volume (cft)1.53
Loading Height (mm)370370
Type of Dust CollectorFabric BagFabric Bag
Dust Collector Capacity (cfm)4001200
Hp of Dust Collector13
Total Power Requirement (HP)515
lnitial Charge of Abrasive (Kg.)35200
Abrasive Blast Cleaning Cycle15-20 Min. for Cast lron15-20 Min. for Cast lron



Roster Provides High-Quality Shot Blasting Equipment for You!
Waiting for your inquiry!
