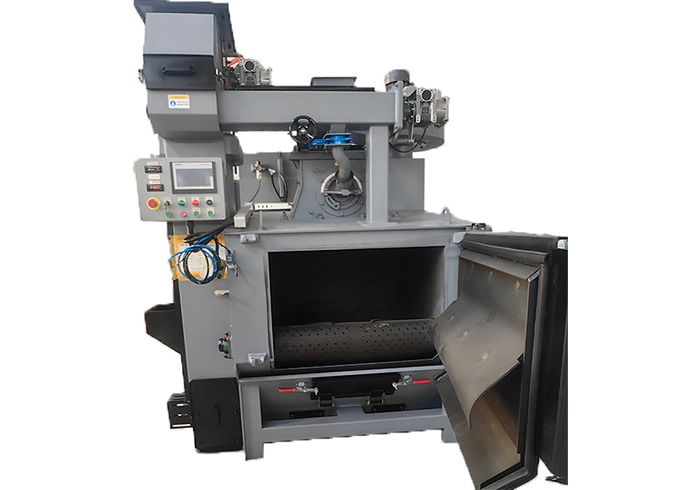

Tumble Belt Shot Blasting Machine

The Tumble Belt Shot Blasting Machine offers a convenient solution for batch cleaning small to medium-sized parts. The tumbling action ensures that all parts are evenly exposed to the abrasive media, making it an excellent choice for mass production and surface preparation.

For custom structure shot blasting machine with high quality and wide applications, Contact Rosterblast

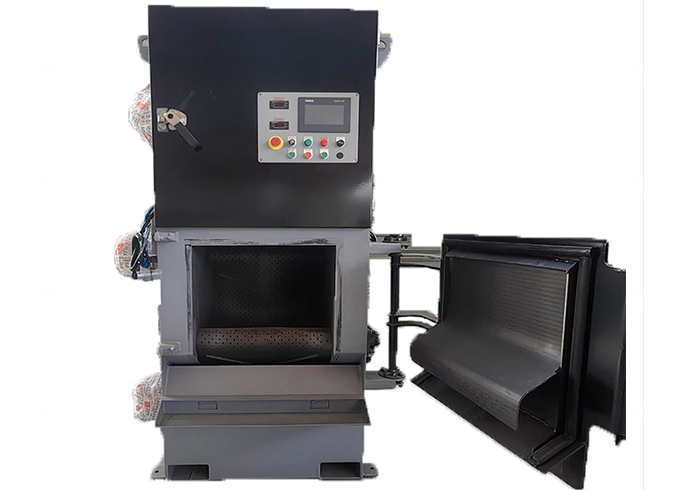

Tumble Belt Shot Blasting Machine

Tumble Belt Shot Blasting Machine


Features of Tumble Belt Shot Blasting Machine

  • Continuous abrasive cleaning using a rubber belt conveyor facilitates efficient shot blast cleaning.

  • Shot blaster for sale with variable speed control for adjustable processing times.

  • Dust extraction system for a clean workspace.


Benefits of Tumble Belt Shot Blasting Machine

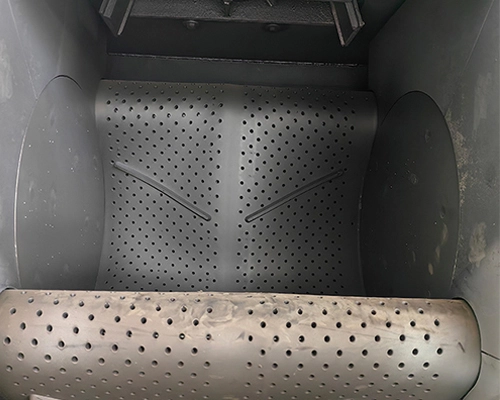

Details of Tumble Belt Shot Blasting Machine

tumble belt shot blasting machine
tumble blasting machine
tumble shot blasting machine

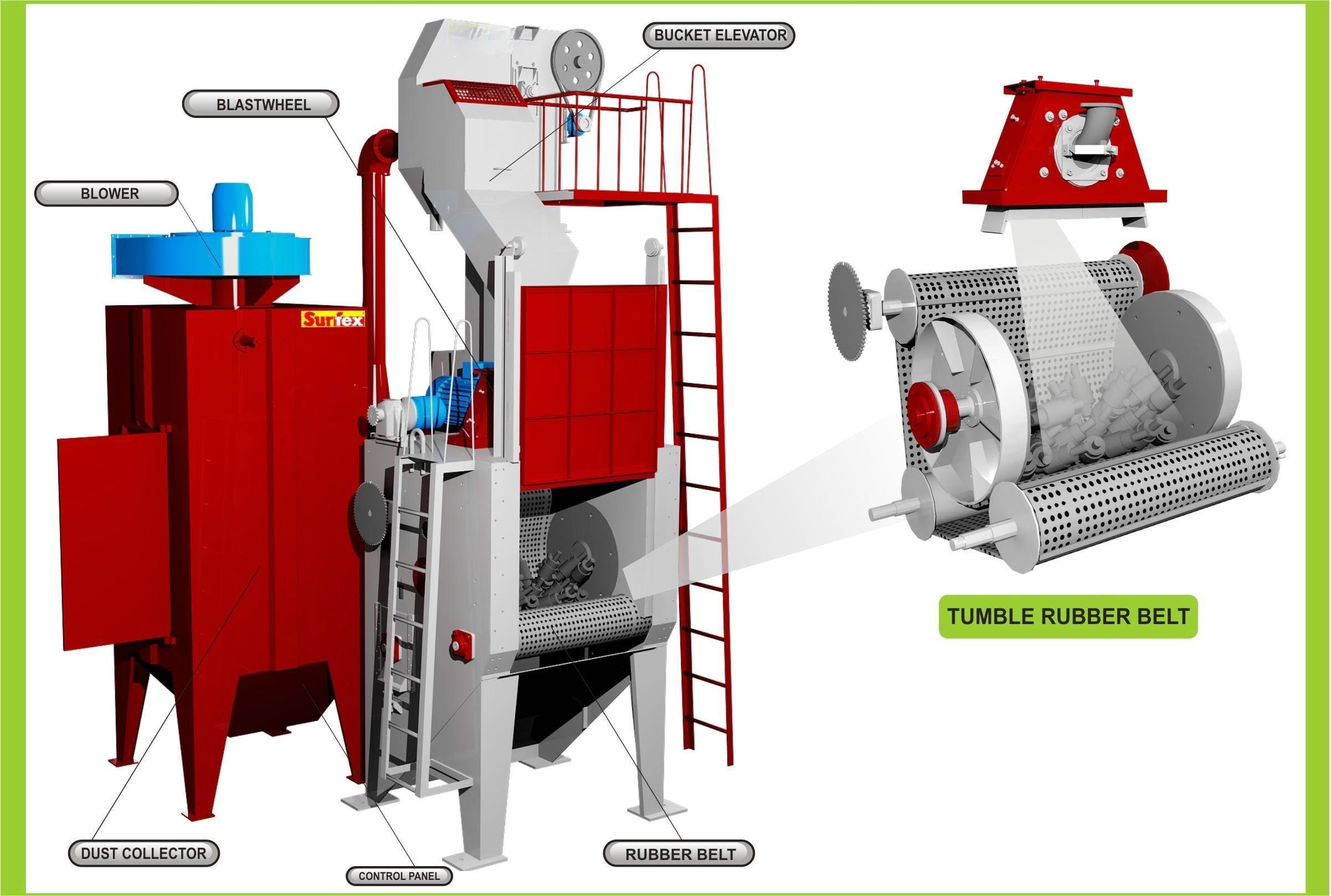

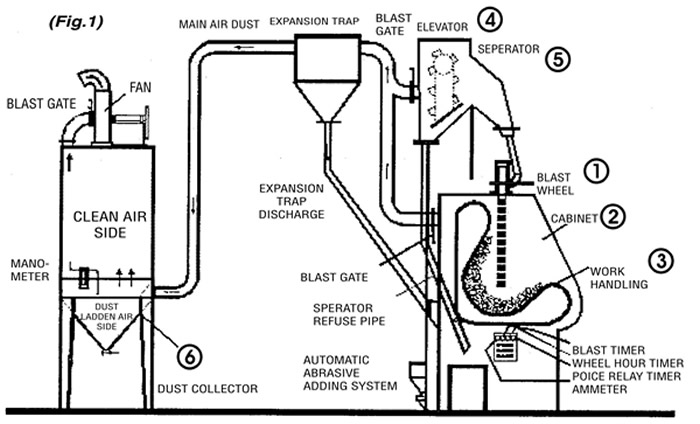

Video of Tumble Belt Shot Blasting Machine Working Principle




Specifications of Tumble Belt Shot Blasting Machine


ModelDetailed3243263210
Chamber sizeMAX.Loading Weight80KG200kg500kg
MAX. Worksize weight5kg10kg25kg
End DiskDiameterφ400mmφ600mmφ1000mm
Rotation Rate3.6rpm3.6rpm3.6rpm
Power0.75kw1.5kw3kw
Production CapacityGrey castings250-400kg/h600-1200kg/h2000-2800kg/h
Blast WheelPower4kw7.5KW11KW
Rotation Rate2900rpm2900rpm2900rpm
Blast Capacity70kg/min130kg/min180kg/min
Total Power
7KW12.7kw23kw



Tumble belt shot blasting machine FAQs

  • What is tumble shot blasting?

    Tumble shot blasting is a surface treatment process that uses a rotating barrel to bombard parts with abrasive media like steel shot to clean, deburr, and modify the surface.

  • How do tumble belt shot blasting machine works?

    Workpieces are loaded onto the continuous belt and enter the blasting chamber. As the belt moves, the workpieces are tumbled and exposed to high-velocity abrasive media. The impact of the media cleans and prepares the workpiece surface. The spent abrasive is then separated from the workpieces and recycled.

  • What are tumble belt shot blasting machine uses?

    Deburring

    Descaling

    Surface cleaning

    Shot peening

    Surface preparation for coating
